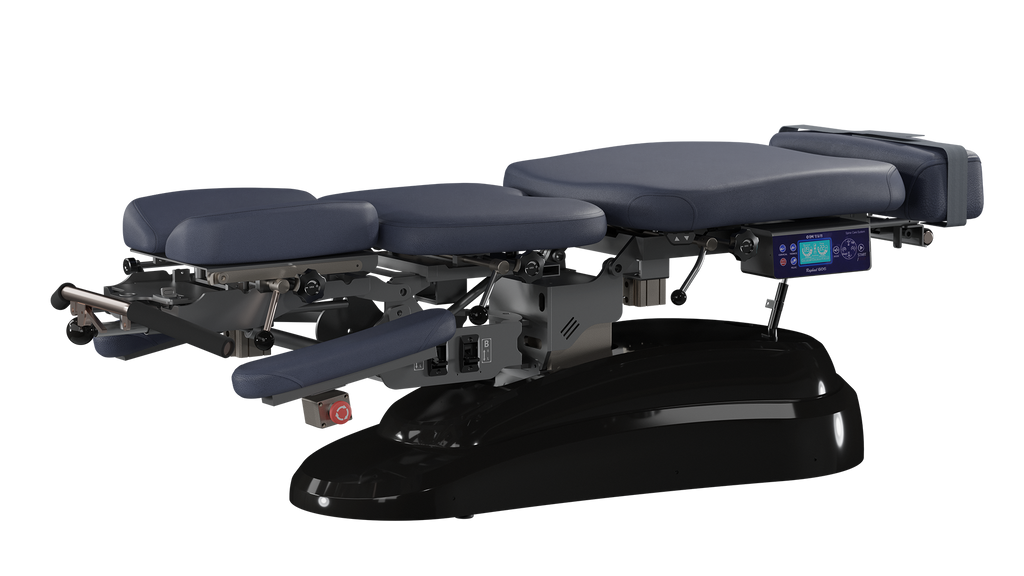

Raphael 606 Auto Flexion Table with Manual Drops
Workhorse Auto Flexion Table
Variable Speed Auto Flexion
Three Manual Drops
Electric Elevation
Standard Features
• Automatic Flexion: 20° / 10 levels speed(max 23 cpm)
• Manual Drops: Cervical, Thoracic/Lumbar and Pelvic
• Front Lateral Flexion with Flexion Assistant Handle
• Headpiece Flexion and Axial Sliding
• Slide-out Footrest
• Digital Control Panel
• 2 Stage Column Elevation
• Abdominal Breakaway
• Synthetic Leather Cushion
• Adjustable Footrest & Handle
• Elevation Button
• 2 Foot Pedals(elevation, flexion)
• Emergency Stop Button
Optional Features
• Flexion Belt
• Scoliosis Package
Specifications
• Height Range: 23”~29”(58.5cm ~ 73.5cm) / Starting Height 20" at request
• Length: 73”~89”(186cm ~ 226cm)
• Width: 25.2”(64cm)
• Weight: 313lbs(142kg)
• Patient Weight Capacity: 330lbs(150kg)
• Foam: Medium Density Standard
• Warranty: 1 Year on All Parts
• Certifications: US FDA Registered, KFDA
• Made in Korea
Details
Crafted with premium, durable materials to support consistent performance in professional settings. Designed with clinicians in mind, it delivers ease of use and reliability for everyday treatment sessions
Shipping & Returns
Because the table requires specialized handling, shipping, installation, and collection may differ depending on your location. Our team will coordinate delivery and setup to make the process as seamless as possible for your clinic. If you need to arrange a return, please reach out to us—each case will be reviewed with care, taking into account the logistics of installation and pickup.
WORKHORSE FLEXION
Variable Speed Auto Flexion
Raphael 606 features variable speed auto flexion and adjustable flexion time. You can adjust the speed up to level 10 and adjust the time up to 30 minutes. The high end motor provides smooth, silent and stable flexion.
Extension
Raphael 606 also supports controlled extension positioning designed to promote spinal mobility, relaxation, and patient comfort. The smooth and stable movement system allows practitioners to provide gentle extension with precision for a more comfortable clinical experience.
Spinal Stretch
This spinal stretch position is designed to help open the anterior chain of the body while promoting gentle spinal extension and postural relaxation. By naturally extending the thoracic and lumbar regions, the position may help reduce muscular tension, improve mobility, and create a more comfortable treatment experience for the patient.
Lateral Flexion
The manual lateral bending with auto flexion maximizes your flexion treatment. The flexion assistant handle ensures easy and comfortable movement.
MANUAL LEVER DROP

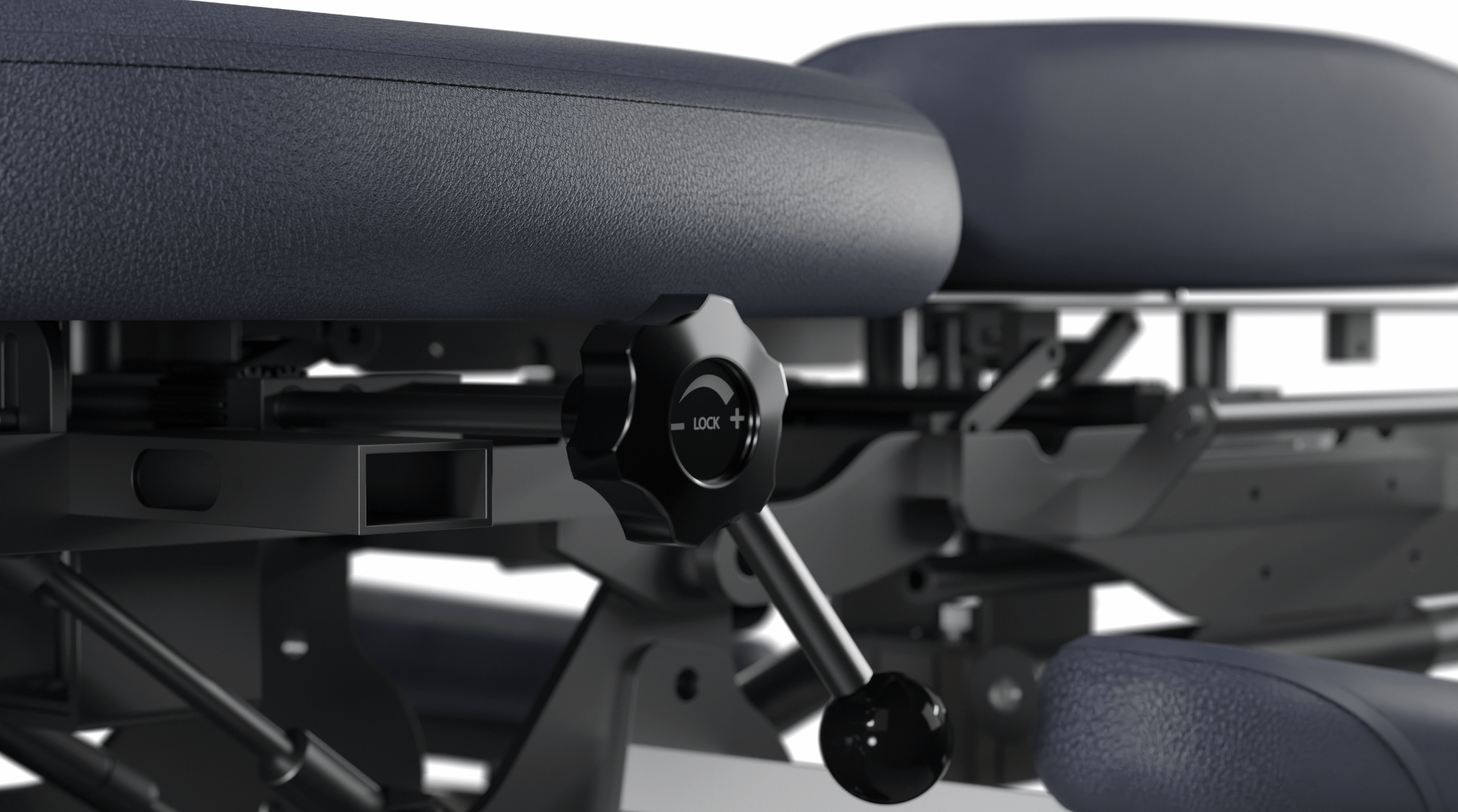

The manual lever drop system is designed to provide a more consistent and balanced drop motion across the entire cushion. Dual tension knobs on both sides allow practitioners to fine-tune the resistance with precision based on patient needs and technique preference. The evenly distributed drop response helps deliver a smoother and more controlled adjusting experience.
DIGITAL CONTROL PANEL
The digital control panel allows practitioners to easily adjust flexion speed from level 1 to 10 and set treatment duration up to 30 minutes. Built-in memory functions enable quick access to frequently used flexion settings for greater clinical efficiency. The programmed positioning system also supports automatic hold functions, including 3-second pauses at both the top and bottom positions for smoother and more controlled treatment cycles.
RAPHAEL 606 TECHNIQUES
STANDARD FEATURES
Cerivcal Flexion
Bar Extension
Axial Sliding
Flexion Handle
Breakaway
Lateral Bending
Slide-out Ankle support
OPTIONAL FEATURES
Scoliosis Package
Flexion Belt
