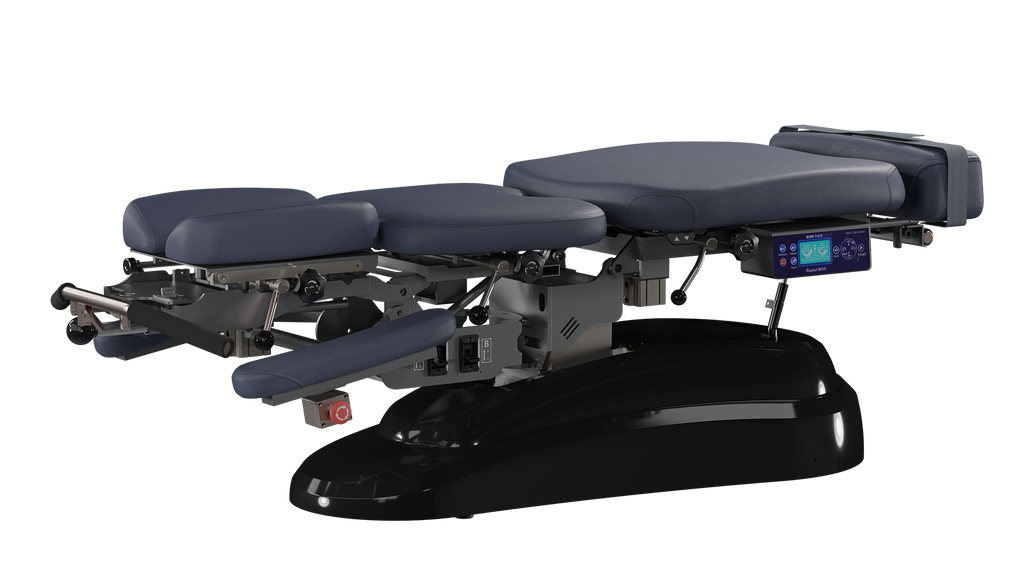

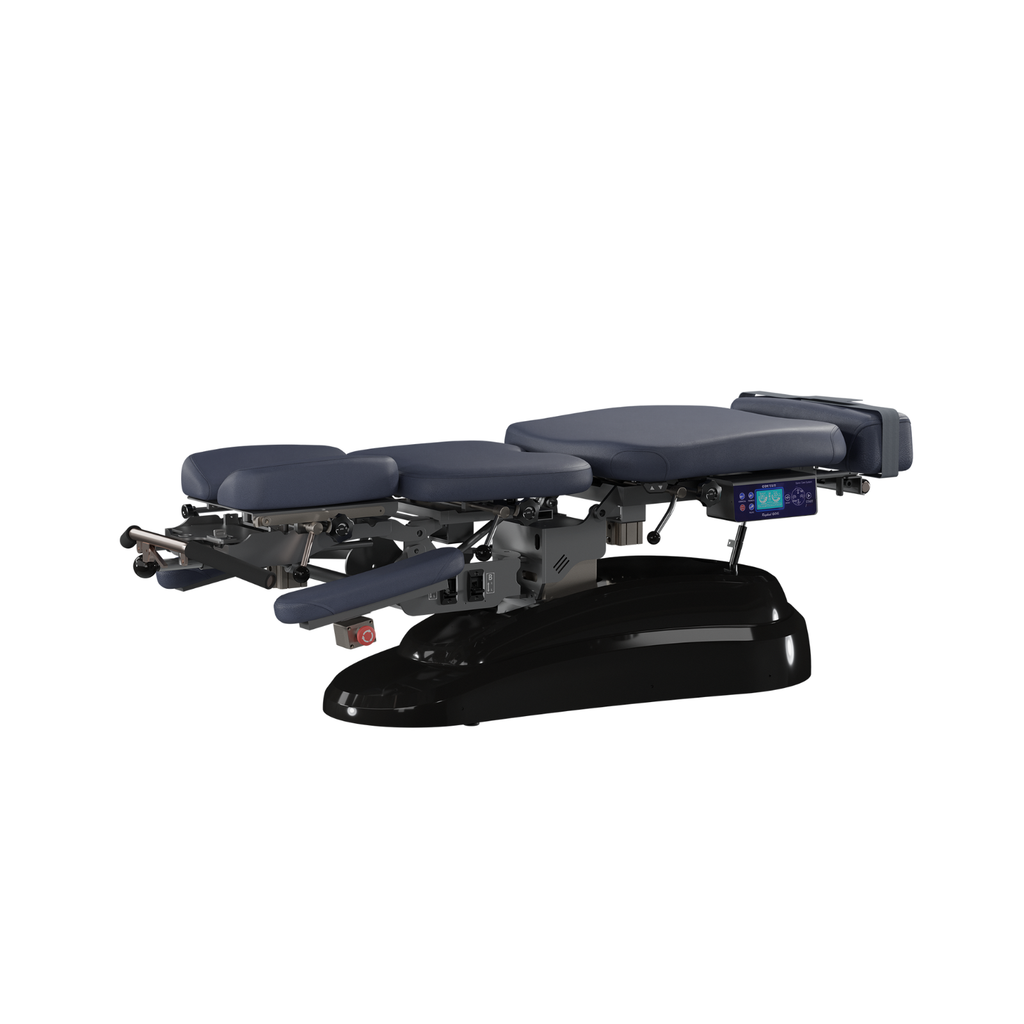

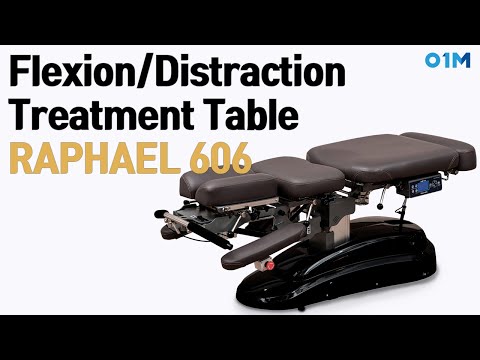

Raphael 606 Auto Flexion Table with Air Drops

$10,495.00

ColorBlack

Workhorse Auto Flexion Table
Variable Speed Auto Flexion
Three Air & Manual Drops
Electric Elevation

Standard Features
• Automatic Flexion: 20° / 10 levels speed(max 23 cpm)
• Air Auto Drops: Cervical, Thoracic/Lumbar and Pelvic

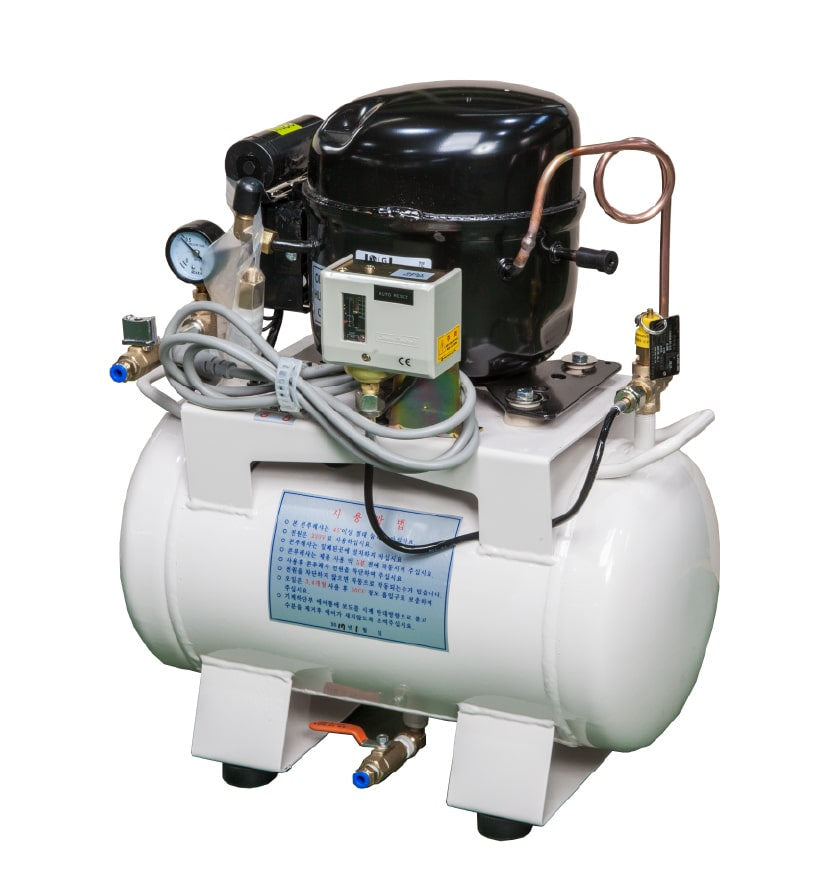

• Silent Air Compressor(included)

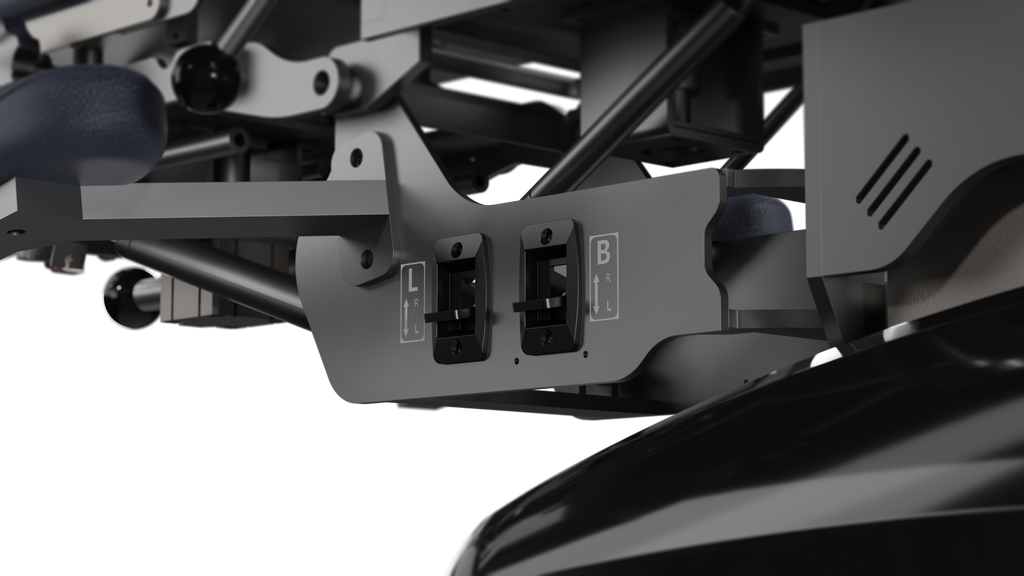

• Manual Drops: Cervical, Thoracic/Lumbar and Pelvic

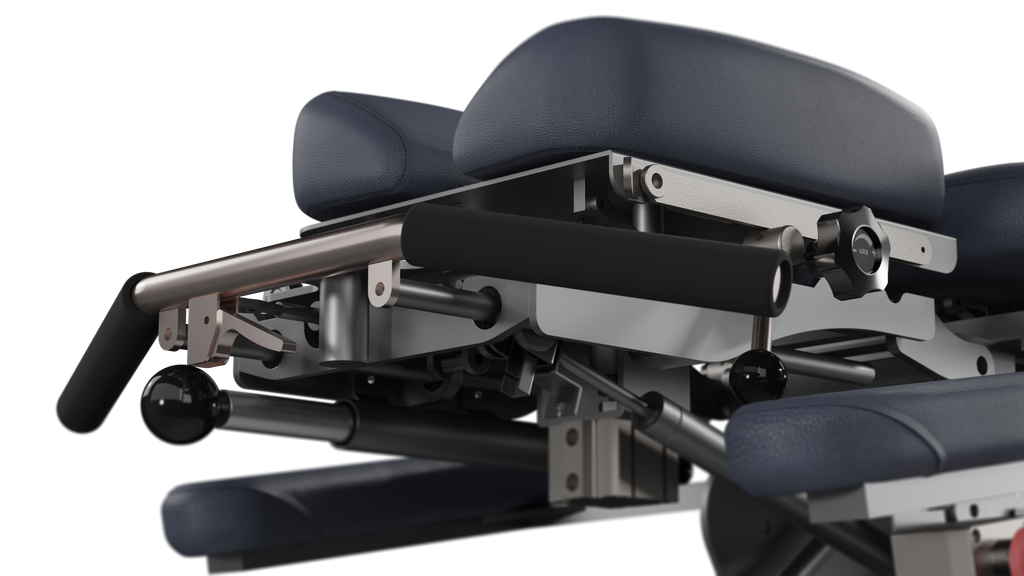

• Front Lateral Flexion with Flexion Assistant Handle

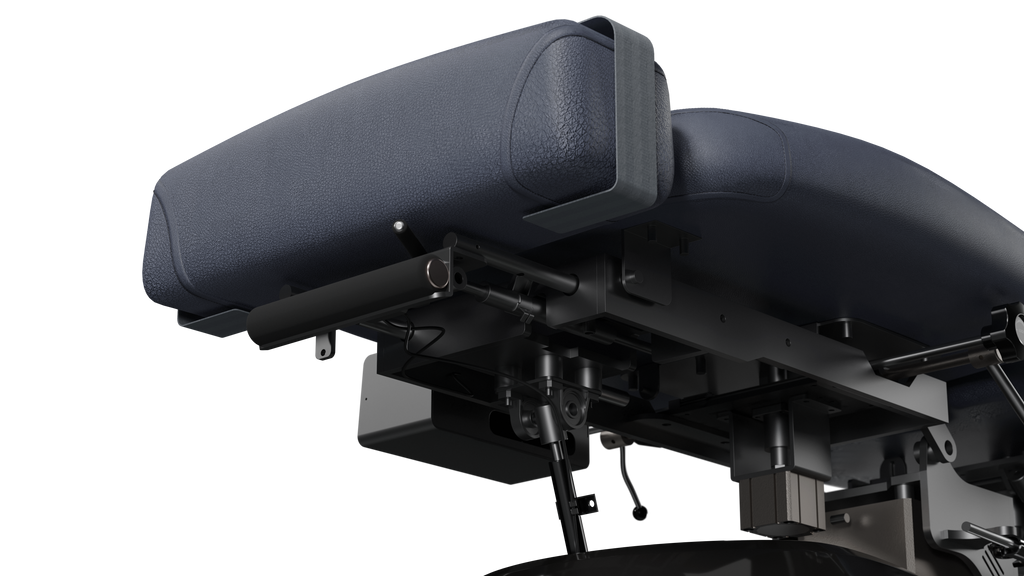

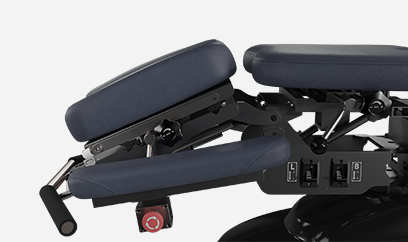

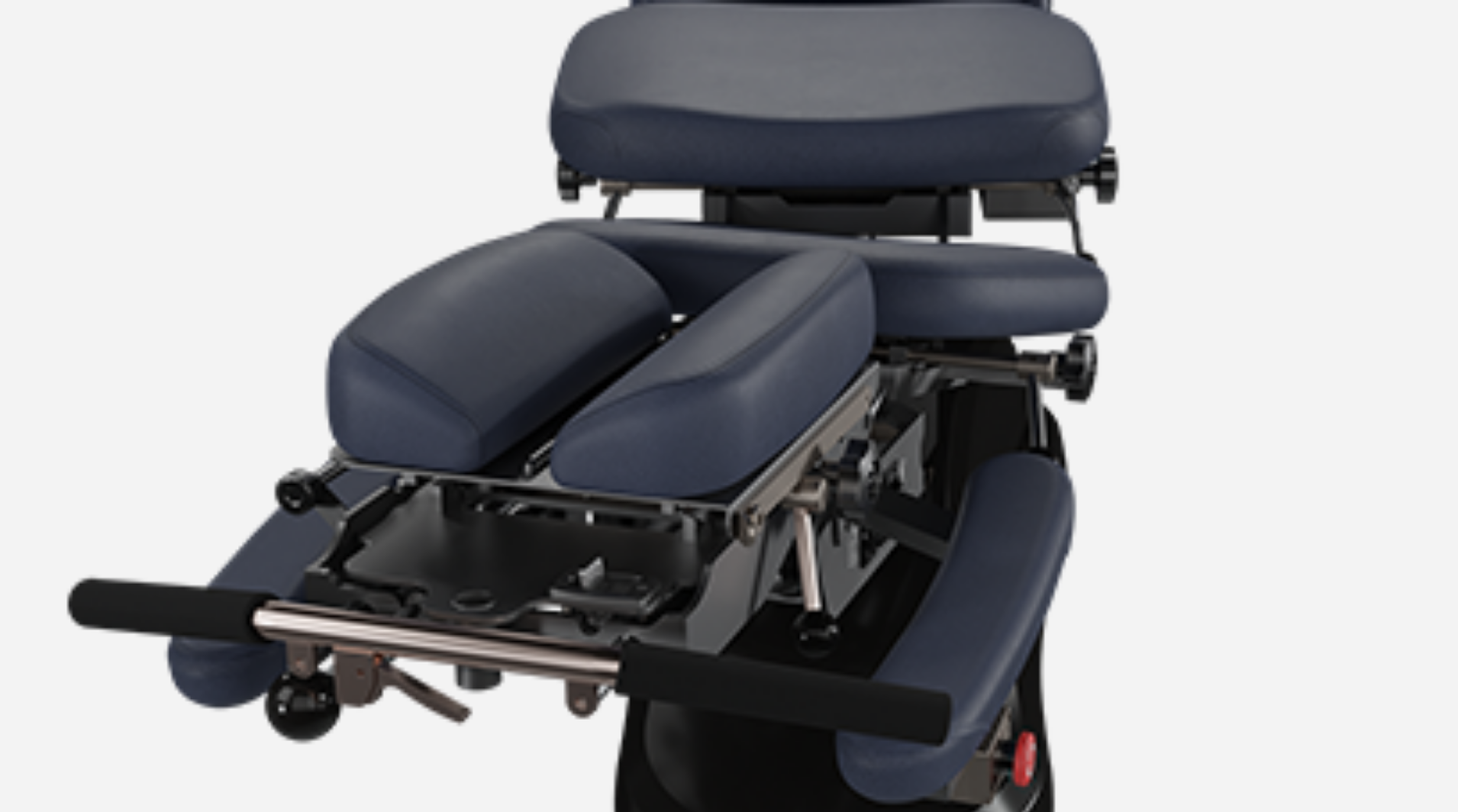

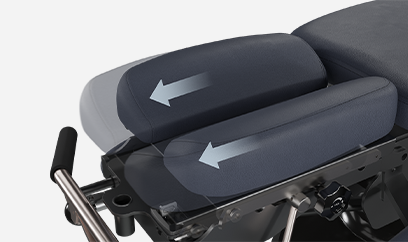

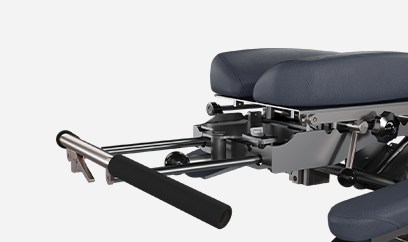

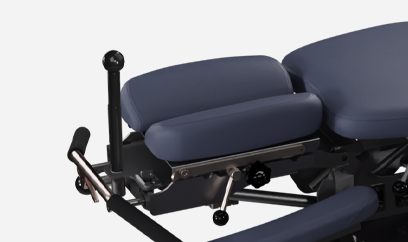

• Headpiece Flexion and Axial Sliding

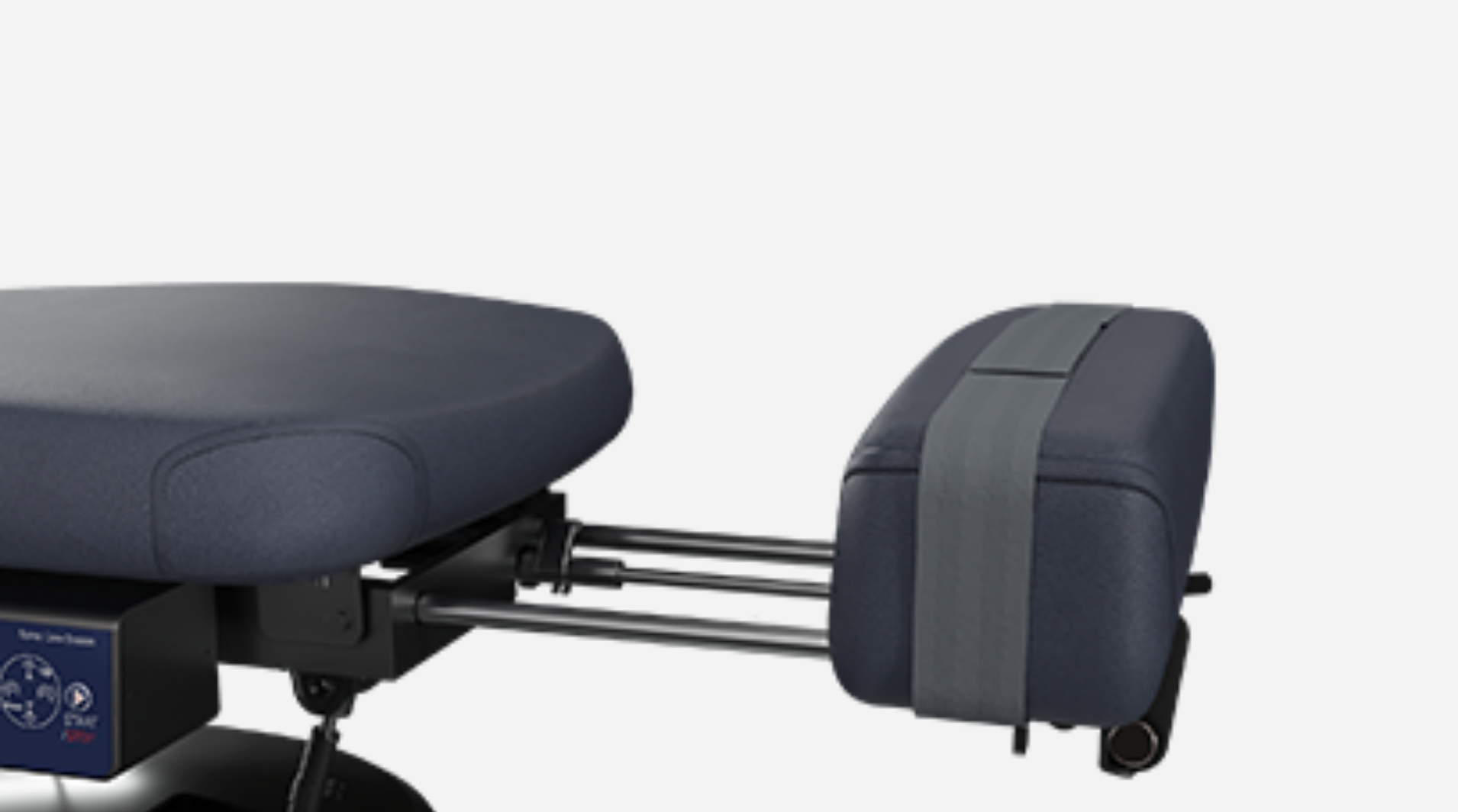

• Slide-out Footrest
• Digital Control Panel
• 2 Stage Column Elevation
• Abdominal Breakaway
• Synthetic Leather Cushion
• Adjustable Footrest & Handle
• Elevation Button
• 3 Foot Pedals(elevation, drop, flexion)
• Emergency Stop Button

Optional Features

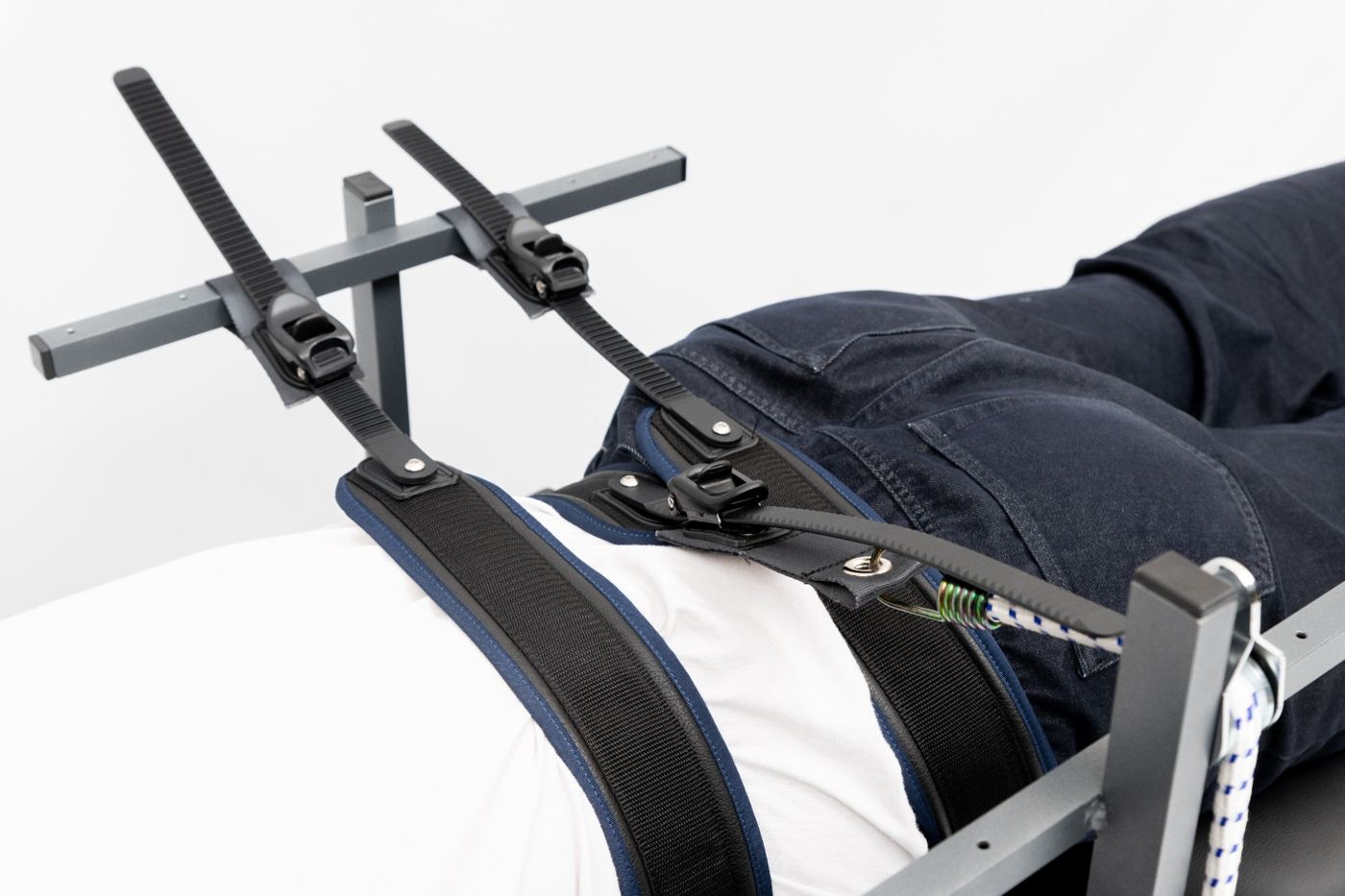

• Flexion Belt
• Scoliosis Package

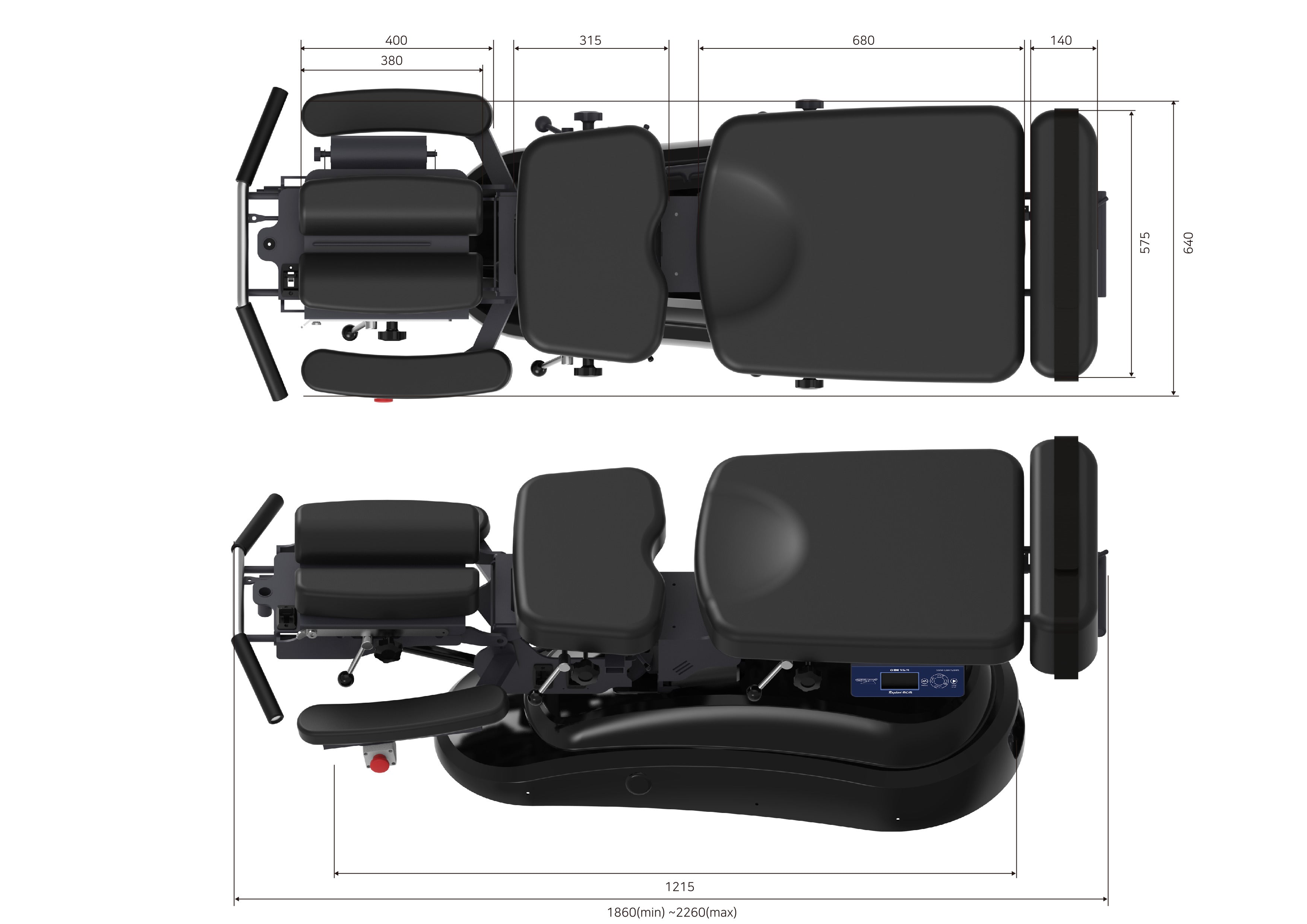

Specifications
• Height Range: 23”~29”(58.5cm ~ 73.5cm) / Starting Height 20" at request
• Length: 73”~89”(186cm ~ 226cm)
• Width: 25.2”(64cm)
• Weight: 313lbs(142kg)
• Patient Weight Capacity: 330lbs(150kg)
• Foam: Medium Density Standard
• Warranty: 1 Year on All Parts
• Certifications: US FDA Registered, KFDA
• Made in Korea

Crafted with Precision

Exceptional Value

Timeless Design

Quality materials

Crafted with premium, durable materials to support consistent performance in professional settings. Designed with clinicians in mind, it delivers ease of use and reliability for everyday treatment sessions

Because the table requires specialized handling, shipping, installation, and collection may differ depending on your location. Our team will coordinate delivery and setup to make the process as seamless as possible for your clinic. If you need to arrange a return, please reach out to us—each case will be reviewed with care, taking into account the logistics of installation and pickup.

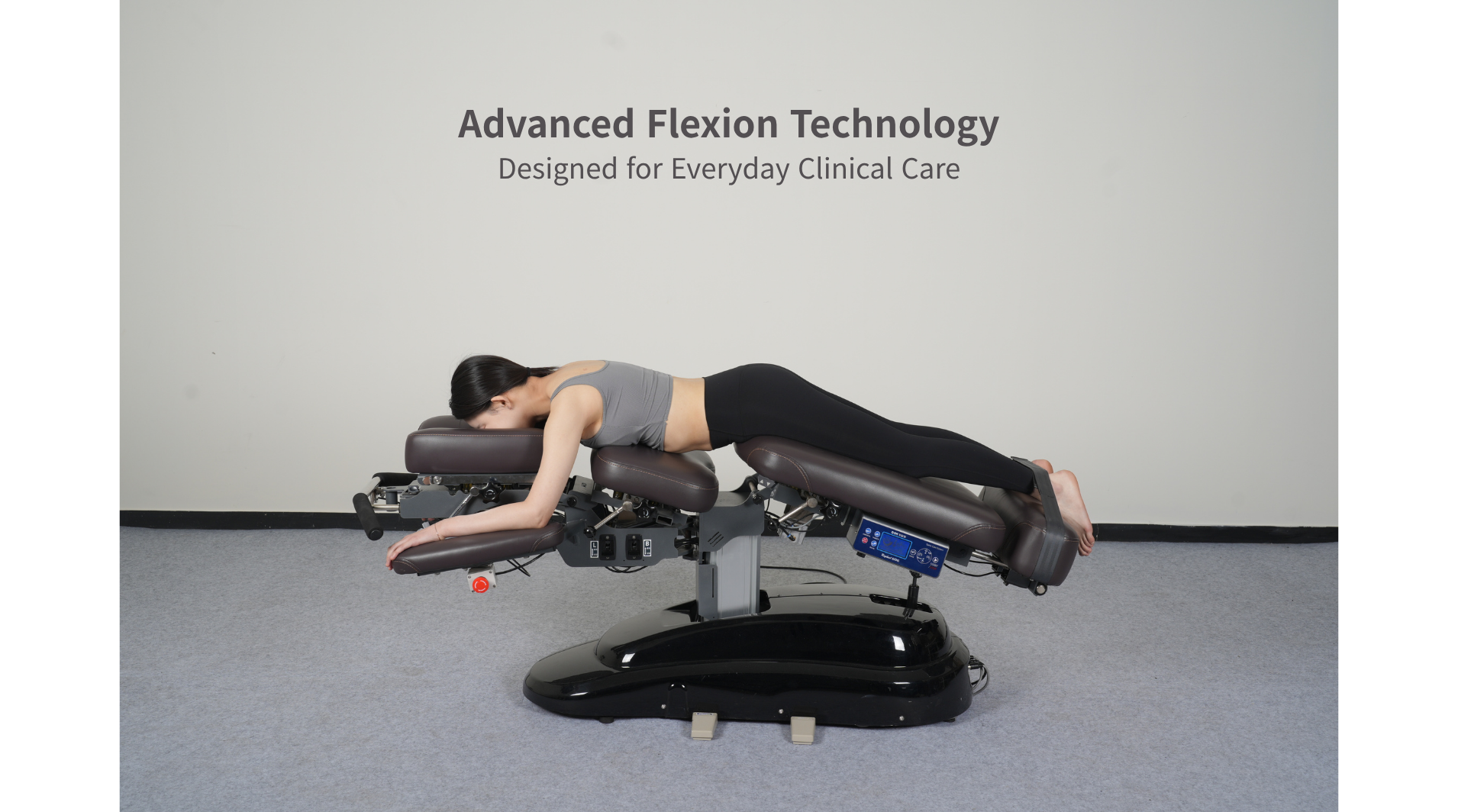

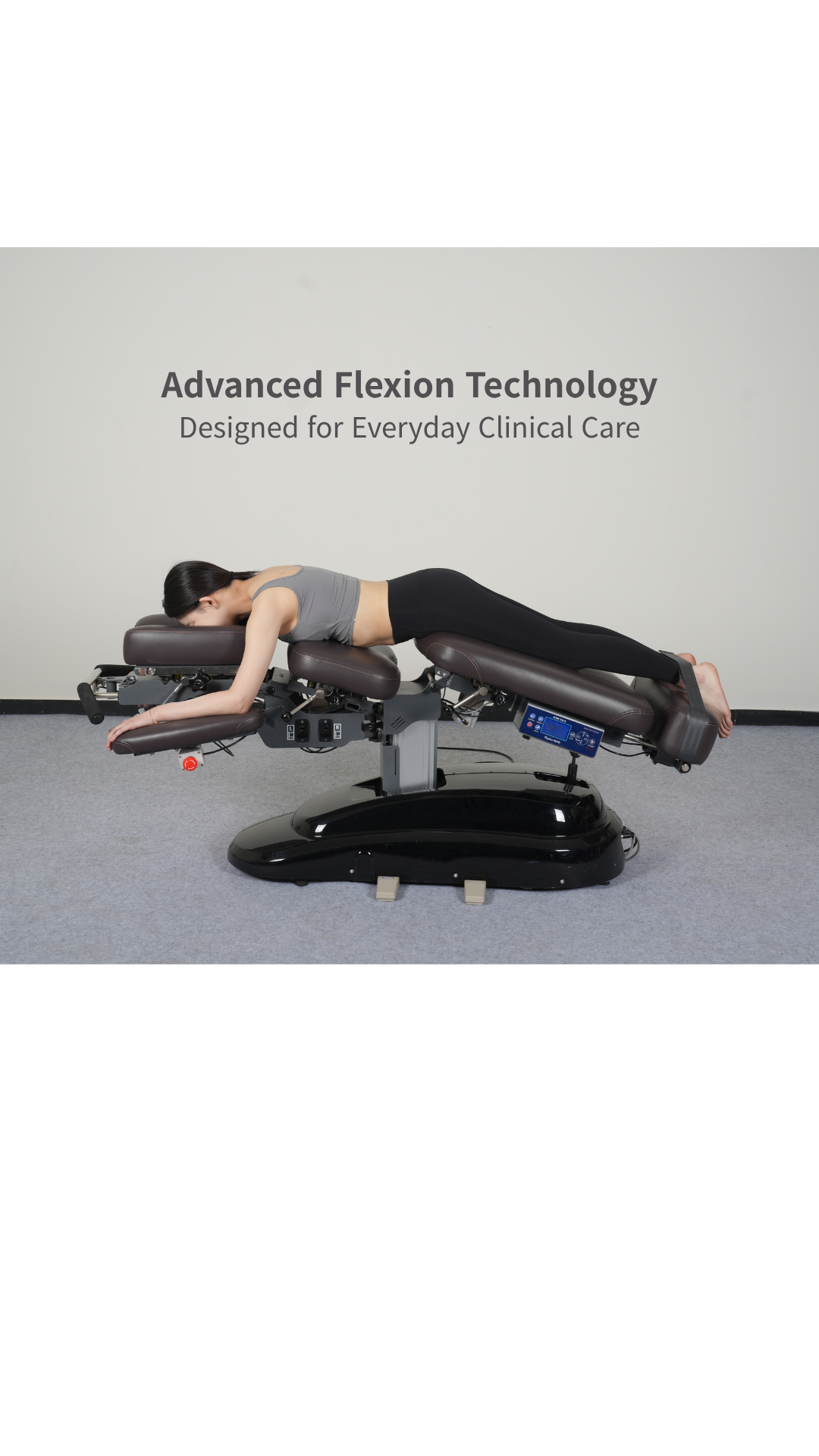

WORKHORSE FLEXION

Variable Speed Auto Flexion

Raphael 606 features variable speed auto flexion and adjustable flexion time. You can adjust the speed up to level 10 and adjust the time up to 30 minutes. The high end motor provides smooth, silent and stable flexion.

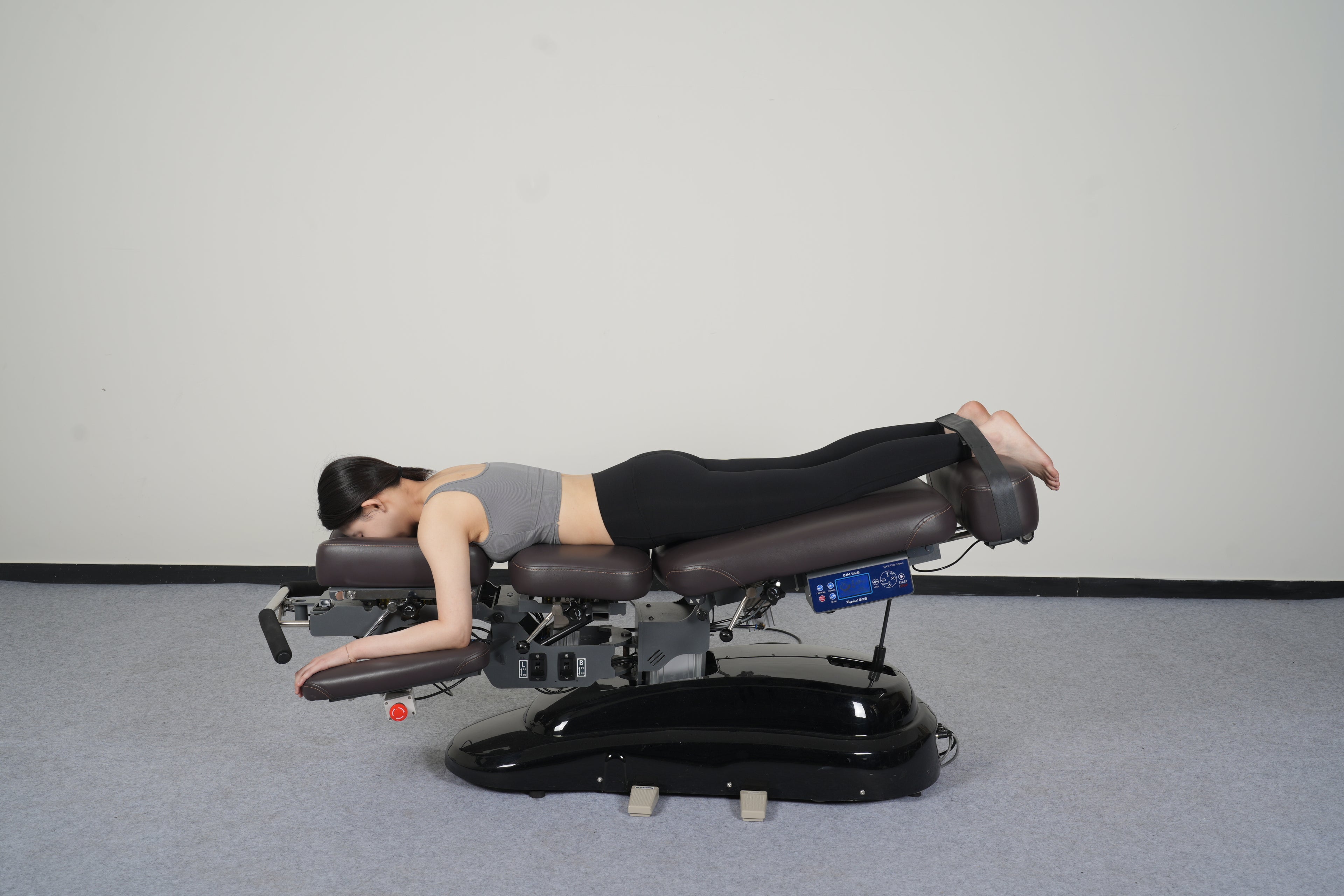

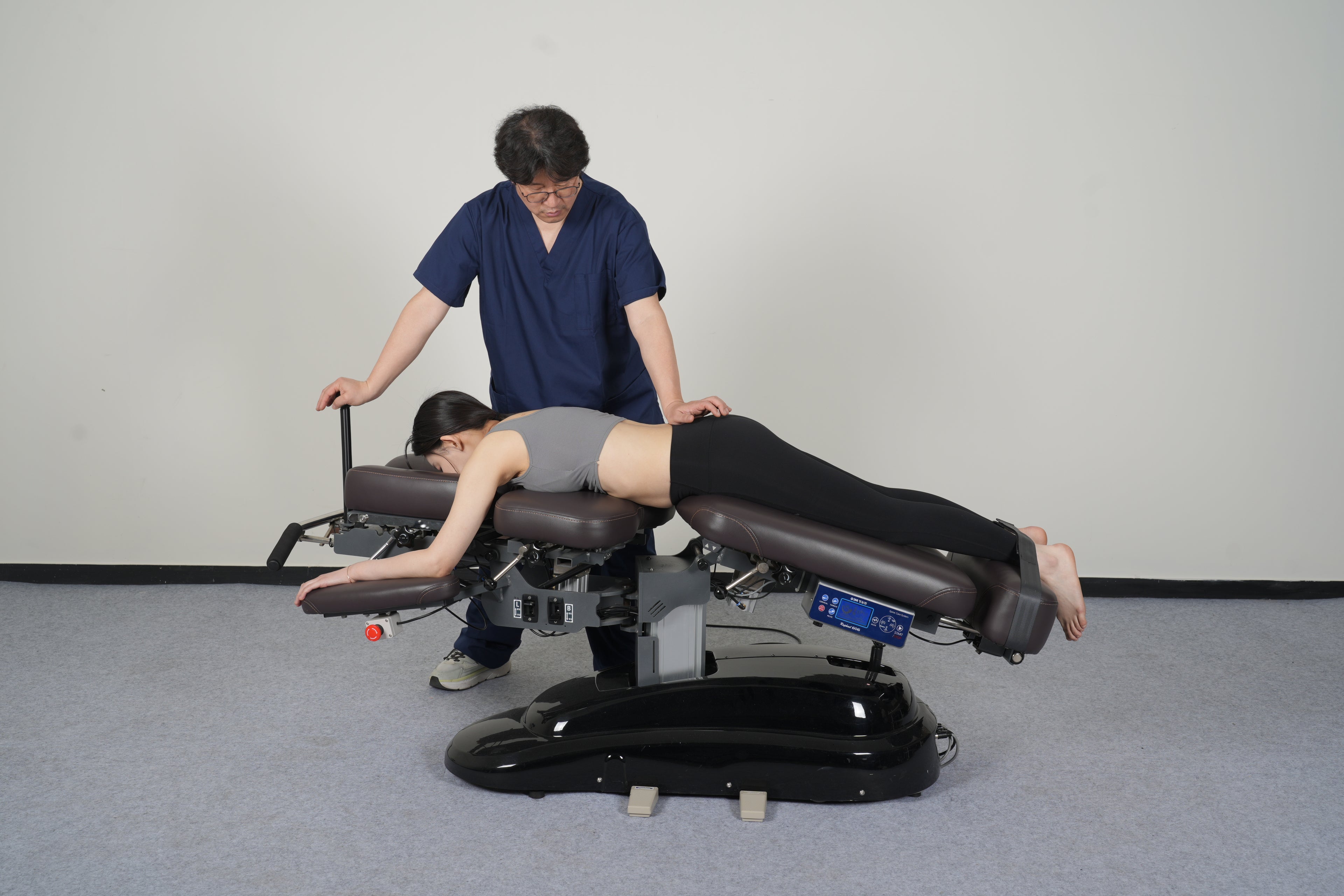

Extension

Raphael 606 also supports controlled extension positioning designed to promote spinal mobility, relaxation, and patient comfort. The smooth and stable movement system allows practitioners to provide gentle extension with precision for a more comfortable clinical experience.

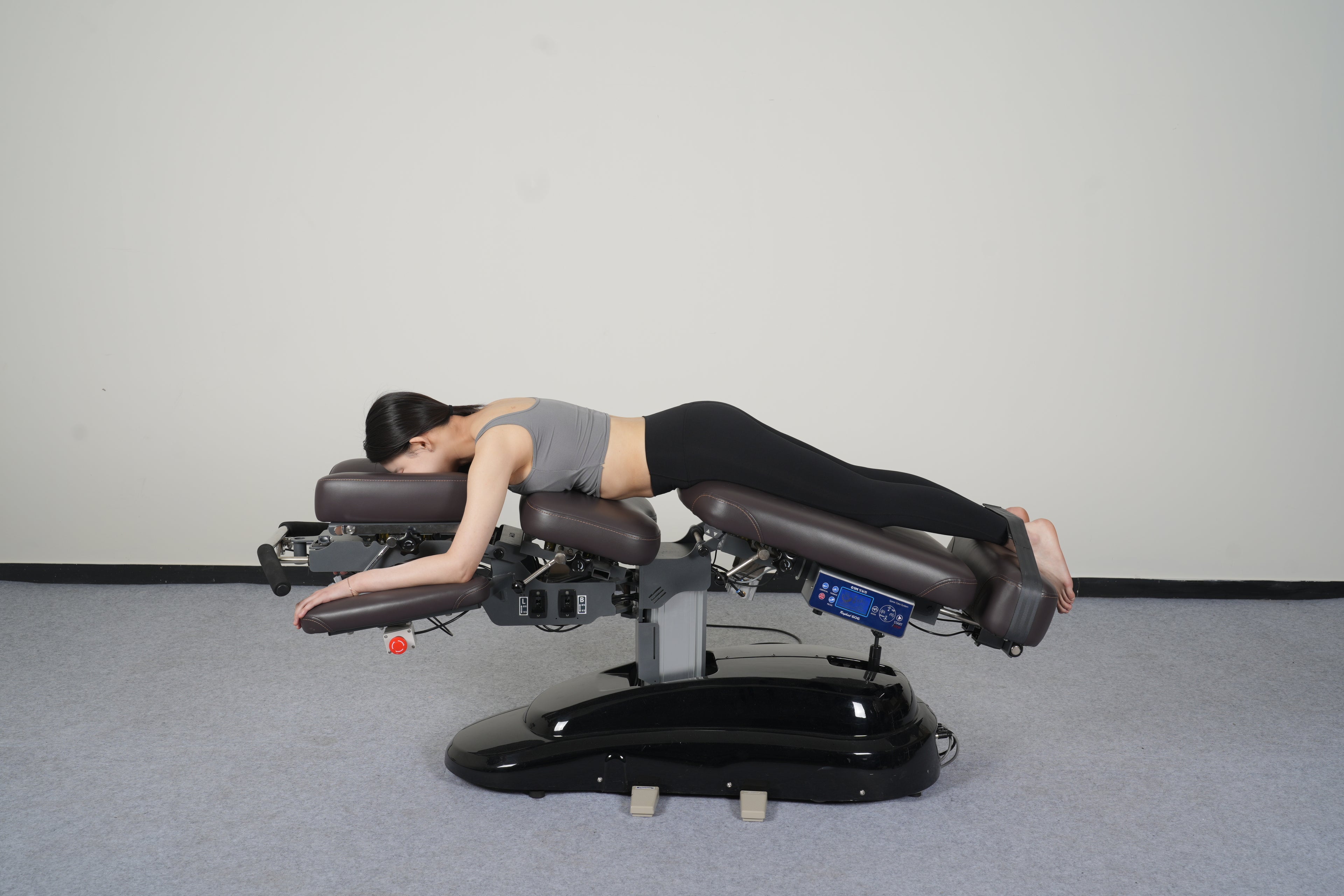

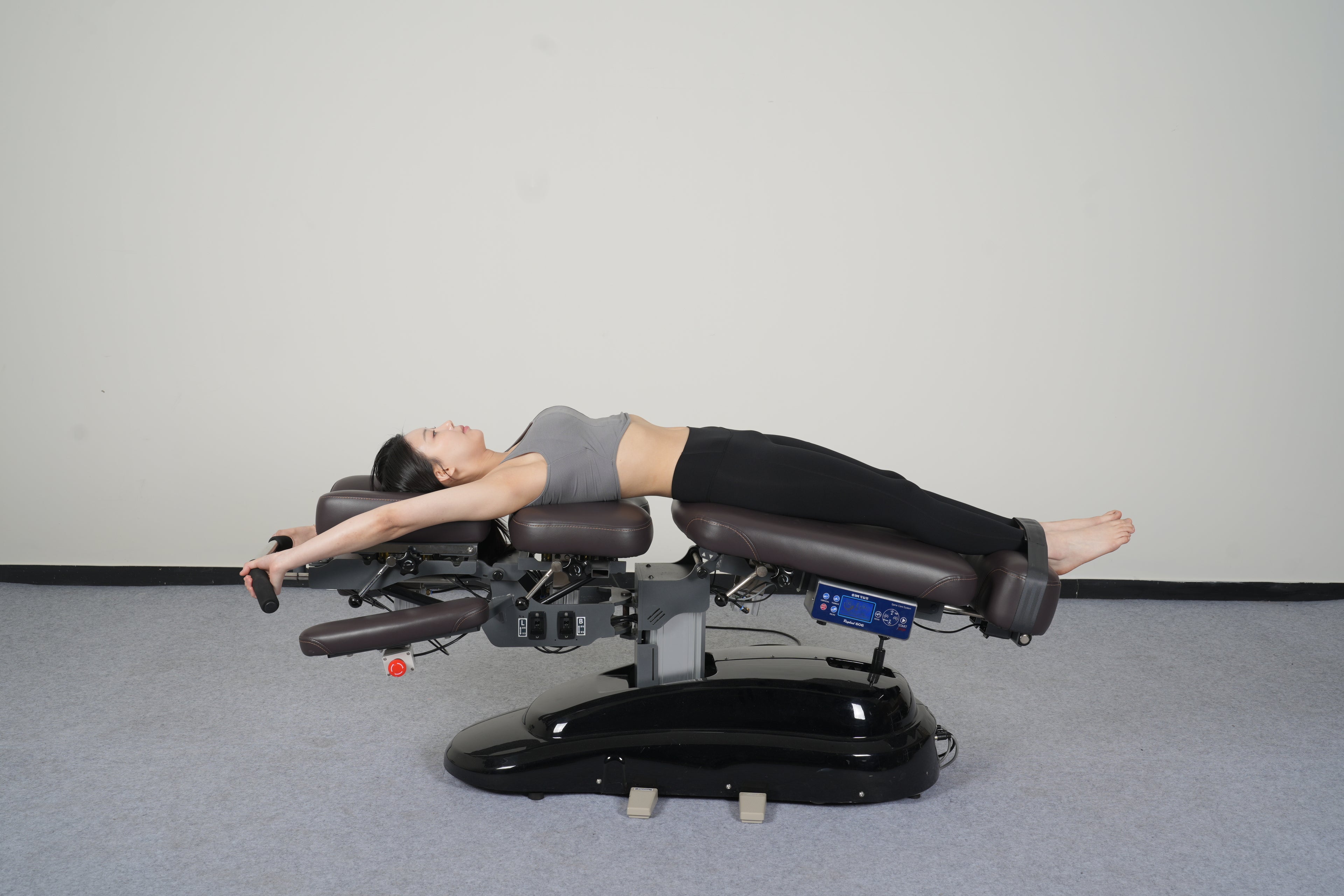

Spinal Stretch

This spinal stretch position is designed to help open the anterior chain of the body while promoting gentle spinal extension and postural relaxation. By naturally extending the thoracic and lumbar regions, the position may help reduce muscular tension, improve mobility, and create a more comfortable treatment experience for the patient.

Lateral Flexion

The manual lateral bending with auto flexion maximizes your flexion treatment. The flexion assistant handle ensures easy and comfortable movement.

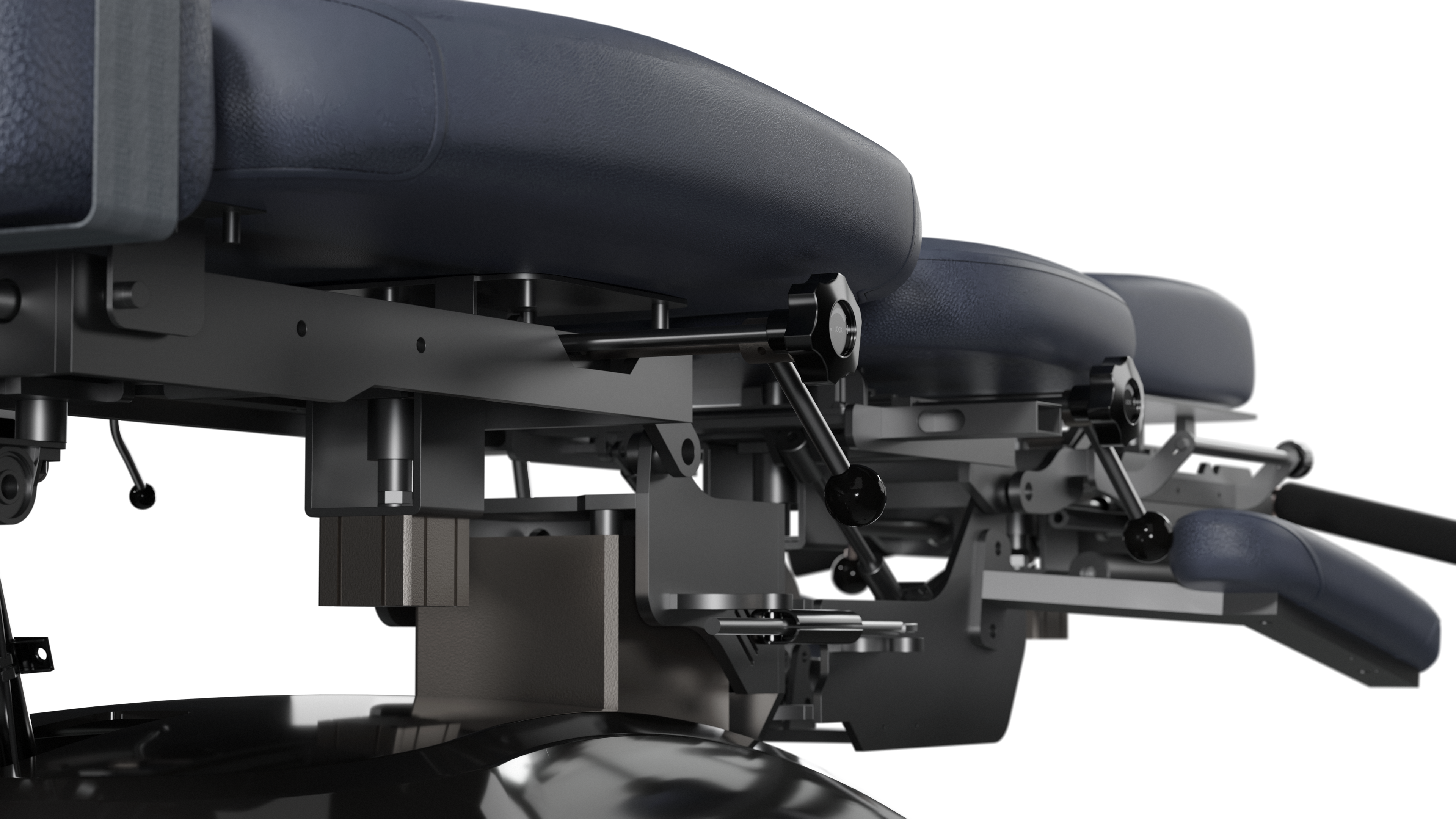

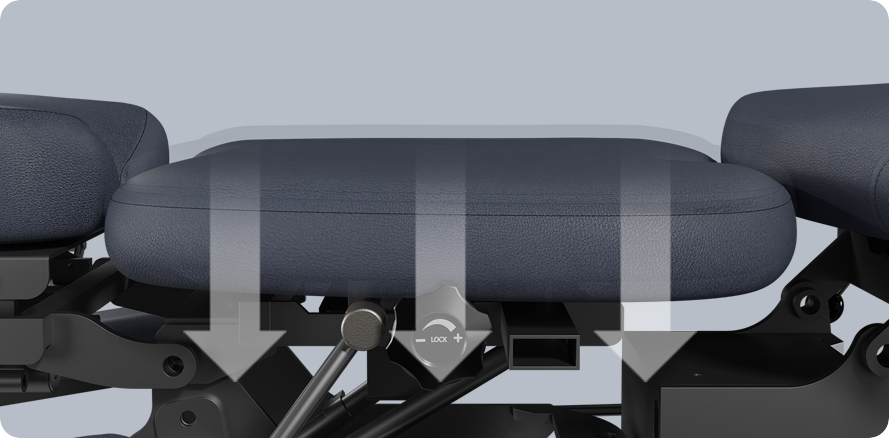

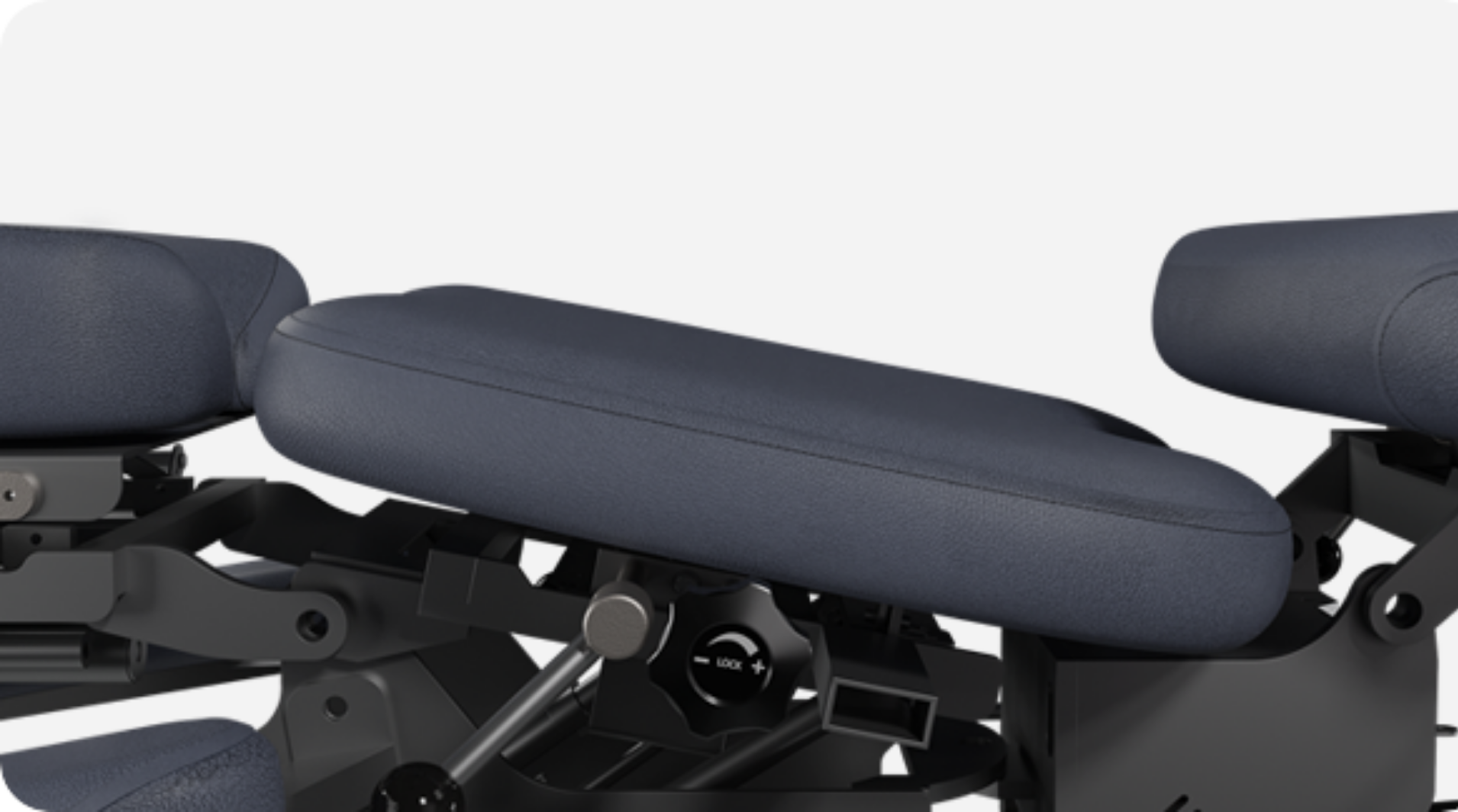

AIR AUTO COCKING DROP

The self-repetitive technology allows you to use no foot pedal or strip. You can focus on your drop adjustment and free your foot. The whole drop piece goes down and up regardless of the force being applied on the right, left or center of the cushion.

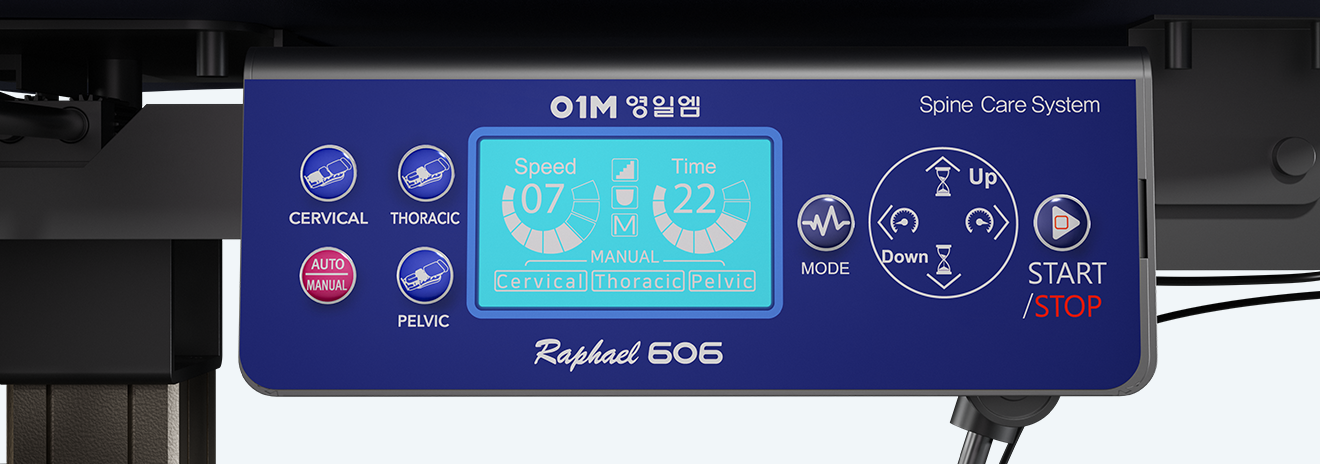

DIGITAL CONTROL PANEL

The digital control panel provides intuitive control of flexion speed, treatment time, and memory functions for greater clinical efficiency. Practitioners can adjust flexion speed from level 1 to 10, set treatment duration up to 30 minutes, and save frequently used settings for quick access. The programmed positioning system includes automatic 3-second hold functions at both the top and bottom positions for smoother and more controlled treatment cycles. The system also supports automatic drop control, allowing users to activate all three drops directly from the panel and select individual drop pieces for auto-cocking functionality.
